Thermocouples



T21

Sheathed thermocouple, compacted MgO insulation with connecter directly on the sheath




T23

Sheathed thermocouple, compacted MgO insulation with connector directly on the sheath and fixed mounting fitting




T24

Sheathed thermocouple, compacted MgO insulation with transition fitting and leads protected by Stainless Steel interlocking armor




T25

Sheathed thermocouple, compacted MgO insulation with transition fitting to flexible leadwire

T26

Sheathed thermocouple, compacted MgO insulation with transition fitting to flexible leadwire and strain relief spring

T52

Insulated wire thermocouple, welded junction



T54

Sheathed thermocouple, continuous run of wire from junction to wire termination






T100

 Insulated wire thermocouple extension harness

Brake Thermocouples

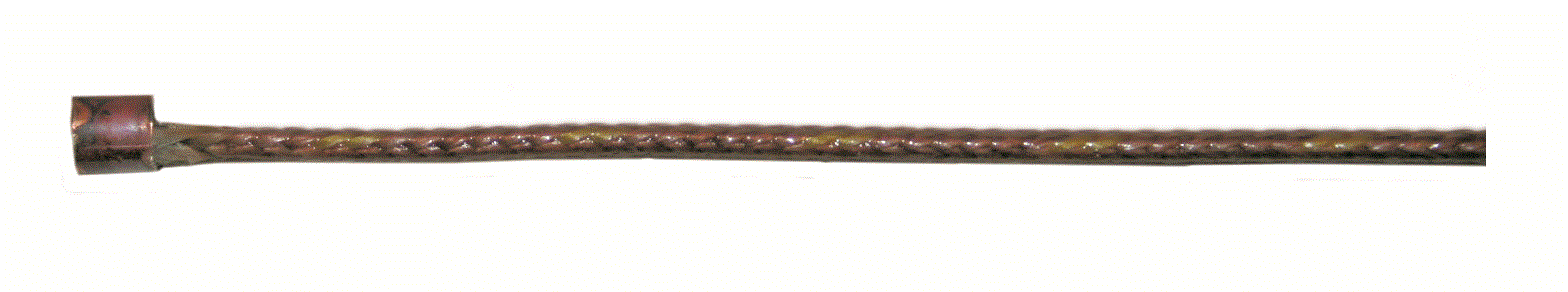

This versatile design is for measuring brake disc and drum temperatures.  It consists of a 1/8” diameter X 1/8” long copper “slug” with the thermocouple wires silver brazed inside.  It is available in any calibration and typically with 22 awg-stranded wire fiberglass insulated.  On special order, it is also available in 1/16” and ¼” diameters and can be furnished isolated from the copper tip to provide an ungrounded version for high noise applications.




 Rubbing Thermocouples

A spring loaded brake type thermocouple is mounted in a ½ inch diameter Stainless Steel tube with double nuts for mounting. It can rub against a moving part to provide surface temperatures with repeatable results to cancel the effects of friction. It is available in Type J or K calibration and can be provided ungrounded.
